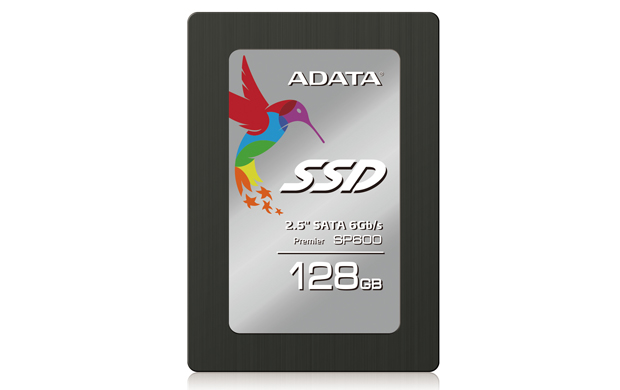

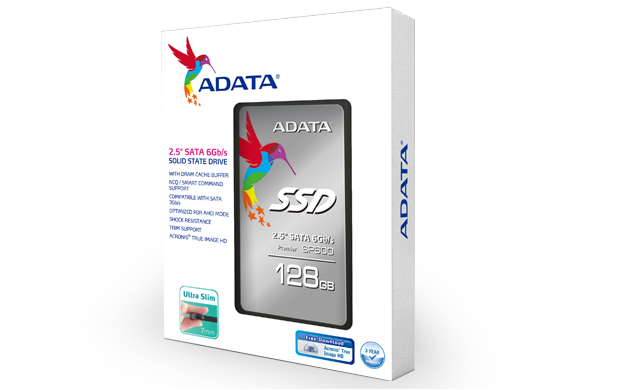

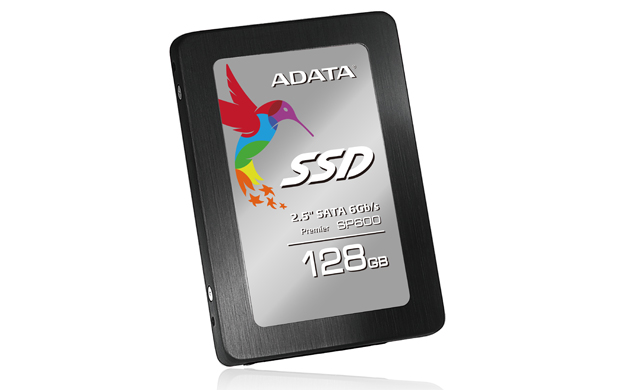

威刚SSD 2.5inch-SP600系列

32 / 64 /128 / 256 / 512GB

Premier SP600采用SATA III 6Gb/s规格，以最新韧体优化技术与严选闪存芯片，搭载JMicron控制器，在效能表现上更为突出，实测结果在连续读写速度上，最高可达每秒550MB, 430MB，而4KB随机读取/随机写入更可高达76,000/73,000 IOPS。作为硬件储存解决方案消费者首次升级的最佳选择。

Capacity	32 / 64 /128 / 256 / 512GB
Form Factor	2.5 inch
NAND Flash	Synchronous Multi-Level Cell (MLC) NAND Flash Memory
Controller	JMicron
Dimensions (L x W x H)	100.45 x 69.85 x 7mm
Weight	68g
Interface	SATA 6Gb/s
Performance	32GB Performance (ATTO) : Read: Up to 220MB/s Write: Up to 37MB/s Multimedia Data Transfer (AS-SSD) Read : Up to 185MB/s Write : Up to 35MB/s MAX 4K read/write IOPS up to 19K/9K 64GB Performance (ATTO) : Read: Up to 430MB/s Write: Up to 70MB/s Multimedia Data Transfer (AS-SSD) Read : Up to 345MB/s Write : Up to 70MB/s MAX 4K read/write IOPS up to 33K/17K 128GB Performance (ATTO) : Read: Up to 540MB/s Write: Up to 150MB/s Multimedia Data Transfer (AS-SSD) Read : Up to 500MB/s Write : Up to 140MB/s MAX 4K read/write IOPS up to 65K/36K 256GB Performance (ATTO) : Read: Up to 540MB/s Write: Up to 290MB/s Multimedia Data Transfer (AS-SSD) Read : Up to 500MB/s Write : Up to 280MB/s MAX 4K read/write IOPS up to 68K/65K 512GB Performance (ATTO) : Read: Up to 550MB/s Write: Up to 430MB/s Multimedia Data Transfer (AS-SSD) Read : Up to 510MB/s Write : Up to 410MB/s MAX 4K read/write IOPS up to 76K/73K *传输速度会依 SSD 容量、测试平台的硬件、测试软件及操作系统的不同而有所差异
Power Consumption	0.35W Active(Typical) / 0.14W Slumber(Typical)
Operating temperature	0°C - 70°C
Storage temperature	-40°C - 85°C
Shock resistance	1500G
MTBF	1,000,000 Hours
ECC Recovery	Up to 60 bits correctable per 1K-byte sector (BCH) *varies depending on exact configuration
Operating Humidity	10% to 90% RH (0° to 40°C)
Storing Humidity	5% to 90% RH (-10° to 40°C)
Max Operating Altitude	12000m
Certifications	CE / FCC / VCCI / BSMI
Accessories	N/A
Warranty	3 Years Where differences may exist, this warranty term supersedes information shown elsewhere.
